This semi automatic wet glue labelling machine is dedicated to label cylindrical bottles (beer bottles for instance) using simple detached paper label by a semi automatic method. This type of labels reduces labelling cost and are easy to remove with water on recycled bottles. This wet glue labelling machine is suitable for beer bottles, cider bottles, apple juice bottles, milk bottles in 33cl, 50cl, 75cl and 1 liter. A printing module is available in order to print a date and a batch or lot number. The recommended glue is a low cost water glue easy to remove with water.
Important Note
It is important to note that a quick manual operation is required on each labeled bottle in order to finish the gluing process (visible on videos). The operation requires operator training and a good machine set up if we want to do it quickly. It is also important to note that a good label gluing depends also on the type of paper and printing (in some cases, some defaults could appears after label drying). Tests are often required.
Semi automatic wet glue labelling machine controlled numerically

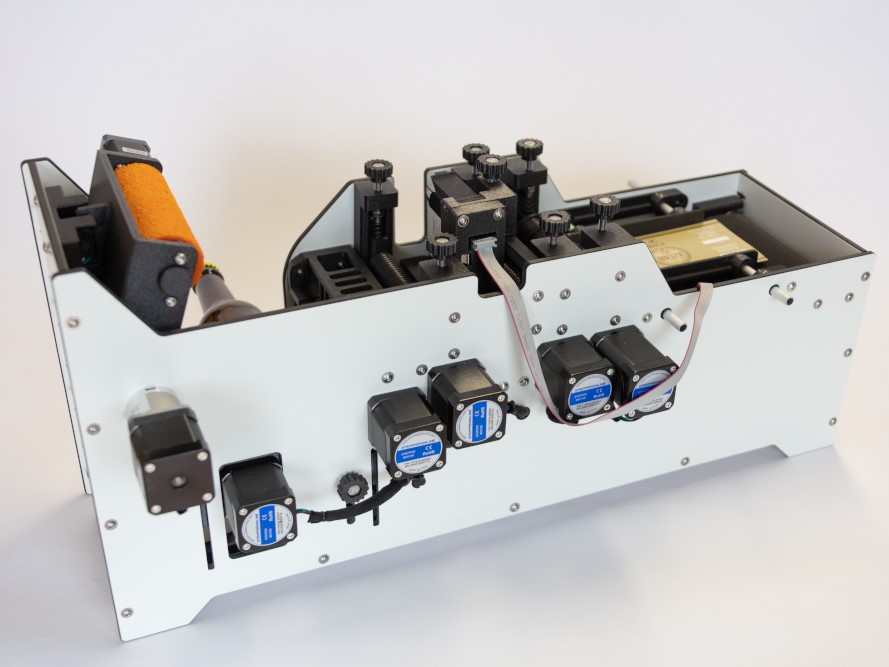

Programmable microcontroller and stepper motors
Wet glue labelling machine structure made of composite materials and 3D printed parts
Automatic bottle detection (with no contact sensor)
Motorized arm (no human action required)
For cylindrical bottles

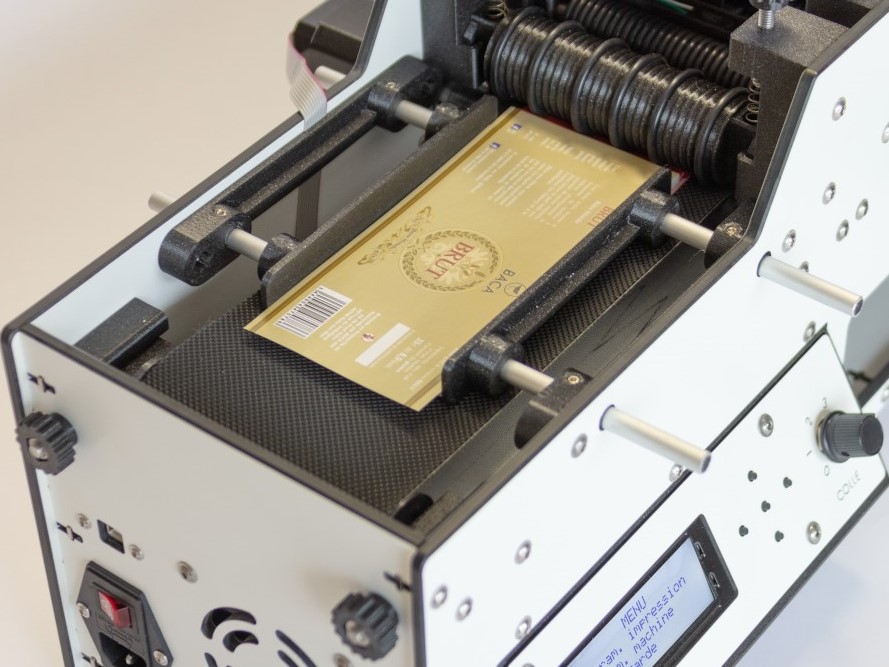

Non adhesive paper label (only one label per bottle)
Maximum label height : 110mm.
Recommended glue : GLUTOFIX 600.
Label height set up (see height limits in table below)
Four available models (ED01.1, ED01.2, ED01.3, ED01.4)
| Machine reference | ED01.1 | ED01.2 | ED01.3 | ED01.4 |
|---|---|---|---|---|
| Bottle diameter (min/max) | 46mm / 83mm | 46mm / 88mm | 46mm / 83mm | 46mm / 88mm |
| Label length (min/max) | 120mm / 200mm | 130mm / 200mm | 120mm / 200mm | 130mm / 200mm |
| Height of the label high end | 137mm max | 137mm max | 152mm max | 152mm max |
| Height of the label low end | 15mm min | 15mm min | 15mm min | 15mm min |
(for other dimensions, please ask us)

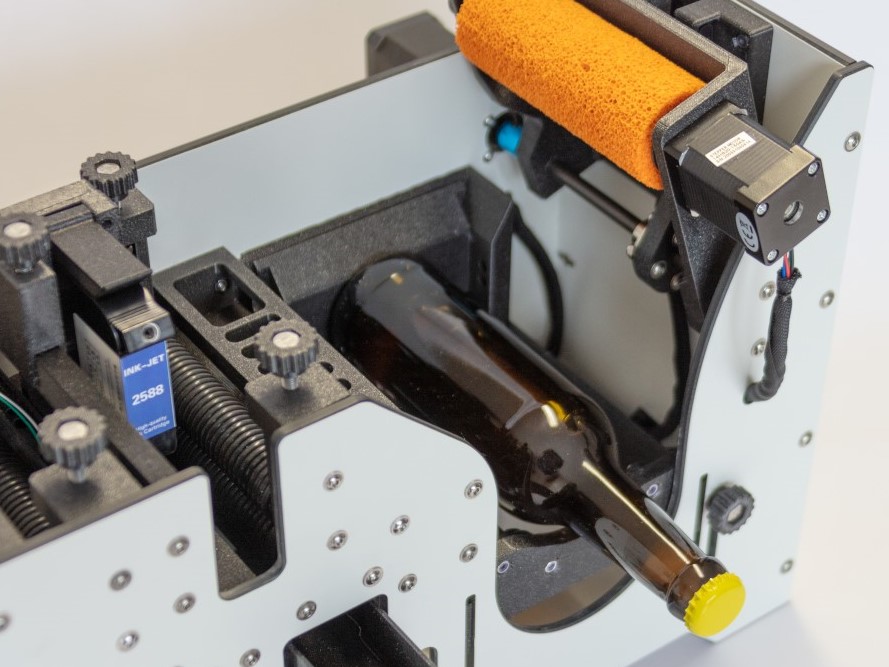

Ink jet printing
-
- 1 or 2 horizontal rows
-
- black color
-
- character height : 3mm
-
- set up and display of the text to print on LCD screen
-
- printing area dimensions : 25x10mm
Glue quantity set up with a potentiometer
Cadence (with 1 operator) : 450 bottles per hour max (including bottles packaging in card box)
Videos on : www.facebook.com/etiqueteuse/
Power supply : 220V - Dimensions : 700 x 350 x 300 mm - Weight : 11kg
1 year guaranty (without consommable parts : ink jet cartridge and O Rings)
